VR48 4' x 8'
CNC Router / Engraver

• 4' x 8' routing area
• Aluminum T-slot or vacuum table available
• 12" Z-axis stroke

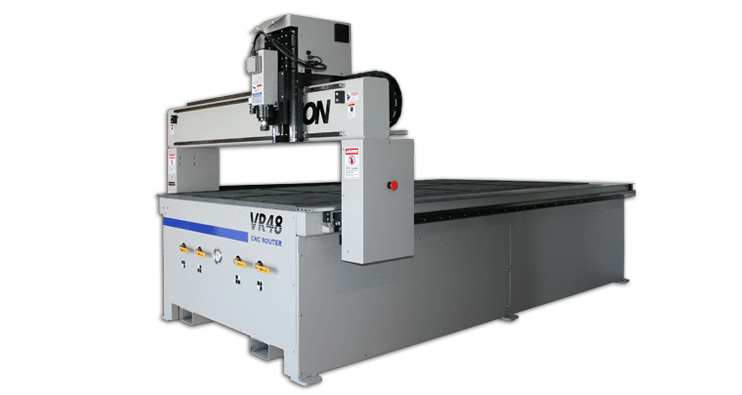

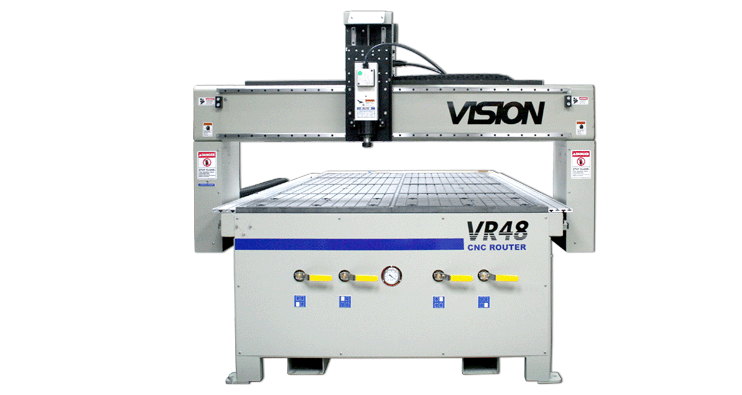

VR48 Router Img 1 VR48 Router Img 2 Sign Inlay Video VR48 Router Videos

Features

Technical Specs

Accessories

VR48 4' x 8' CNC Router Features

The VR48 CNC Router/ Engraver is a heavy-duty 4' x 8' CNC machine that can produce accurate, repeatable, cost-effective work in considerably less time than it takes to do the same work by hand. Featuring our state-of-the-art Vision Series 5 Controller with V-Touch Pendant and our graphically advanced Vision software, this machine is perfect for a wide variety of applications including milling, drilling, contouring, and routing.

The VR48 CNC Router:

• 4' x 8' routing area

• Includes NEW Series 5 Controller w/ V-Touch pendant

• Ethernet interface

• 12" Z-axis stroke

• Aluminum T-slot or vacuum table available

Black Box Vacuum Pump

Applications: ADA-compliant signage, Routing out wood signs, Cutout letters, Control panels, Cutting out sheets of material up to 4' x 8', 2 1/2D and 3D signs in sign foam, wood and more!

Click here for a printable PDF overview sheet.

Offering the best and most affordable CNC Routers in their class, Vision's VR48 CNC Router is made in the USA, built to be rugged, and backed by a superior customer support team.

VR48 4' x 8' CNC Router Specifications Chart

Software	Vision Express standard (Expert or Pro optional)
Maximum work area	51" x 101"
Z-Axis Stroke	12"
Standard Spindle Power	3 HP
Resolution / Speed	0.0005" - 10"/sec
Table Type	Aluminum T-slot or optional vacuum
Interface	Ethernet
Controller	Series 5 Controller w/ advance V-Touch Pendant
Warranty	1-Year Limited
Power Requirements	110V 5 Amps/ Single phase 220V 50 Amps
Physical Dimensions	75"(W) x 125"(D) x 72"(H)
Series 5 Controller Dimensions	13.5"(W) x 16"(D) x 4.5"(H)
Weight	2,500 lbs
Additional Options	Automatic Braille Inserter, DACS (Digitally Aligned Cutting System), Vacuum Table, 4.4 HP & 7HP Spindles, *3D Engraving Software, Oscillating Knife

*Compatible 3D Engraving Software available for purchase from 3rd party vendors

Contact Vision Engraving & Routing Systems to learn more about the Best 4x8 CNC Routers, get a price quote, request a free online demo, or call 1-888-637-1737.

VR48 4' x 8' CNC Router Accessories

	NEW Oscillating Knife Work with a variety of materials and applications such as Graphic Foam Boards, Closed Cell Foam, Plastic-Covered Foam, Corrugated Cardboard and Plastic, Gasket Materials, Rubber, Cork, Carpet, Felt and other Single-ply Cloth or fabric, Vinyl, Leather, and more. Oscillating Knife Press Release
	ENGRAVING HEAD Choice of 1/4" of 11/64" top loading or optional collet spindle
	NSK HIGH-FREQUENCY 50,000 RPM ENGRAVING SPINDLE This high-frequency spindle is perfect for deep engraving into metals! The high RPM allows cutters to stay sharp much longer for increased production, and allows for much faster speed in engraving. Includes control box; no nose cone. Available as an option for our 16 Series and 24 Series Engravers, as well as our 25 Series Routers (with engraving head option).
	UNIST Misting System The Unist Micro-Dispensing Coolant System with solenoid, significantly reduce the cost and volume of cutting fluid used in metal cutting, forming, and stamping operations. Applying a vegetable-based, biodegradable lubricant in controlled amounts will reduce wear and tear of cutting tools during machining operations.
	DACS (Digitally Aligned Cutting System) DACS, an alignment tool which provides perfect print-to-cut registration for our routing machines. This easy-to-use system requires minimal training and setup time, and is the most cost-effective, accurate solution for improving digital finishing.
	AUTOMATIC Raster™ BRAILLE INSERTION TOOL The Raster™ Pen Braille insertion device is an option for our engraving and routing systems. Vision-Pro software includes Braille fonts and is fully compatible with the Raster™ Method. Vision machinery allows precise placement of the Rasters™ (Braille beads), which are essential for shops producing ADA-compliant signage. The Raster™ Method of Braille insertion and Raster™ Pen are licensed, patented products owned by Accent Signage Systems, Inc. Minneapolis, MN.
	VACUUM CHIP REMOVAL SYSTEM Quiet vacuum pump for removing engraving chips. The unit has a large filtered canister with replaceable collection bag. Includes vacuum nose cone and kink resistant hose. Vacuum Chip Removal System Buy Now
	Single Phase Black Box Hurricane Vacuum Pump Max Flow: ~400 CFM Max Vacuum: 4.6 - 4.9 PSI Noise Level: 85 dBa Inlet Port Thread: 3" Weight: 194 lbs Dimensions: 34.5" W x 16" D x 17.5" H Power Requierments: 220V -240 Vac 30 Amp, Single Phase Vacuum Pump Press Release
